Preorder-LaserPecker LX1

$1,161.17 $1,399.00

🎊🎊NEW ARRIVAL SALE🎊🎊

LX1 Presale Shipping Time: July, 2023

Foldable Design

The foldable frame requires no assembly, opens for instant use, and packs flush for easy storage. Just lift and turn and you're ready to start making. When your work is complete, simply fold and store the LX1 until you’re next inspired to create.

Cutting Ability

The LX1 has remarkable cutting capability on a wide range of materials. With the 20W module, it can cut from paper and leather to 10 mm opaque acrylic and 15 mm solid wood to unleash your creativity.

Working Area & Engraving Accuracy

The LX1’s working area is 400 mm x 420 mm (15.75” x 16.54”) enabling full-page engraving and cutting of large shapes and parts.The engraving speed of the LX1 is incredibly high, with a maximum of 200mm/S, while maintaining an unparalleled engraving accuracy of less than 0.01mm.The 10W & 20W 450nm blue lasers laser spot is only 0,08mm, and the 2W 1064nm laser spot is 0.03mm to realize high engraving precision.

Exchangeable Tool Modules

The LX1 is configurable with four interchangeable modules; a 10W 450nm Blue Light Laser, a 20W 450nm Blue Light Laser, a 1064nm Wavelength Infrared Laser, and an Artist Module compatible with various pens and drawing implements. These tools realize the possibility to work with various materials, surfaces, and projects.

Safe to Use

LX1 comes with various protective measures: The emergency stop button can instantly stop the laser with a slight touch; The laser will automatically shut down if the internal temperature is over 50℃; Also, when the tilt is over 15°, the laser will start the tilt protection and shut down the laser.

Read more

Laser Module Comparison>>>
Laser Module
Adapter Specification

Simple Folding Frame
for Instant Use & Easy Storage

Simple Folding Frame
for Instant Use & Easy Storage

The LaserPecker LX1's simple "lift-and-turn" frame requires no assembly, enables work to begin quickly, and makes for convenient storage.

The LaserPecker LX1's simple "lift-and-turn" frame requires no assembly, enables work to begin quickly, and makes for convenient storage.

Foldable Design

Foldable Design

No Assembly Required
Opens for Instant Use

Allows for Quick and
Convenient Storage

No Assembly Required
Opens for Instant Use

Allows for Quick and
Convenient Storage

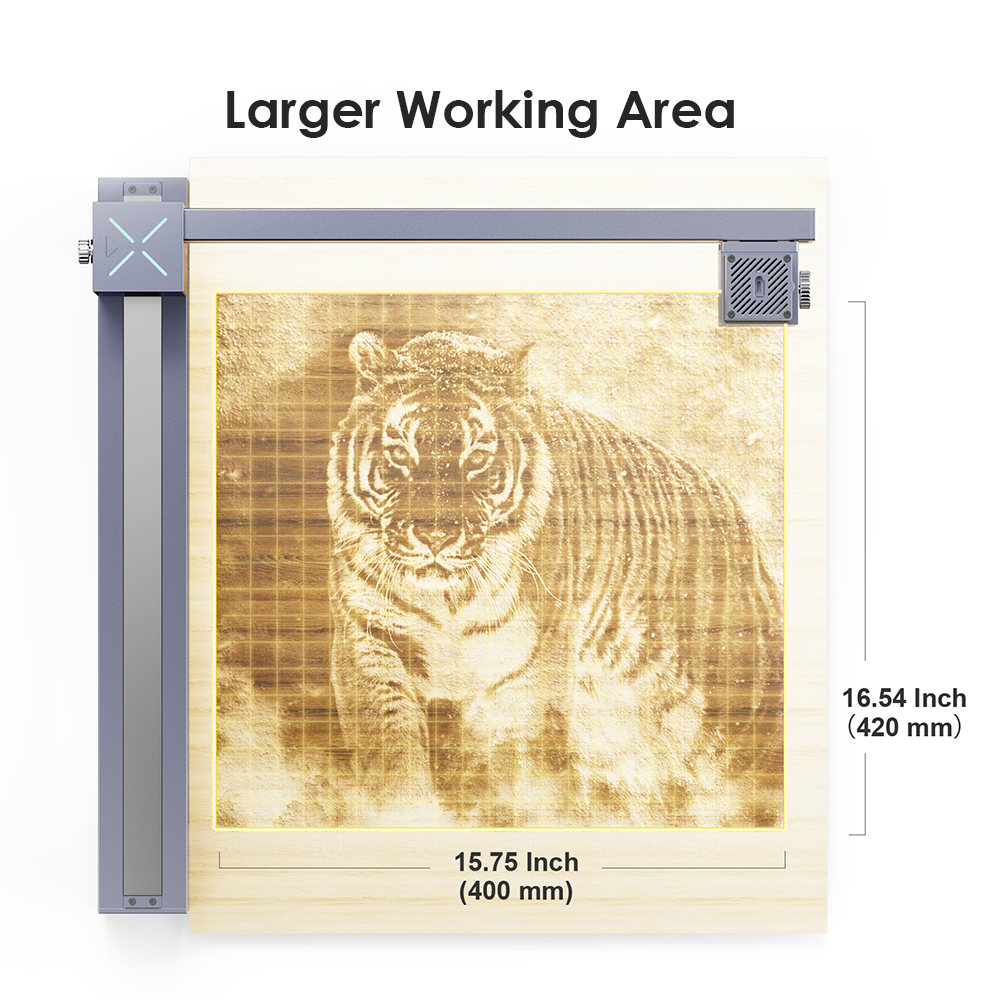

Larger Working Area

Larger Working Area

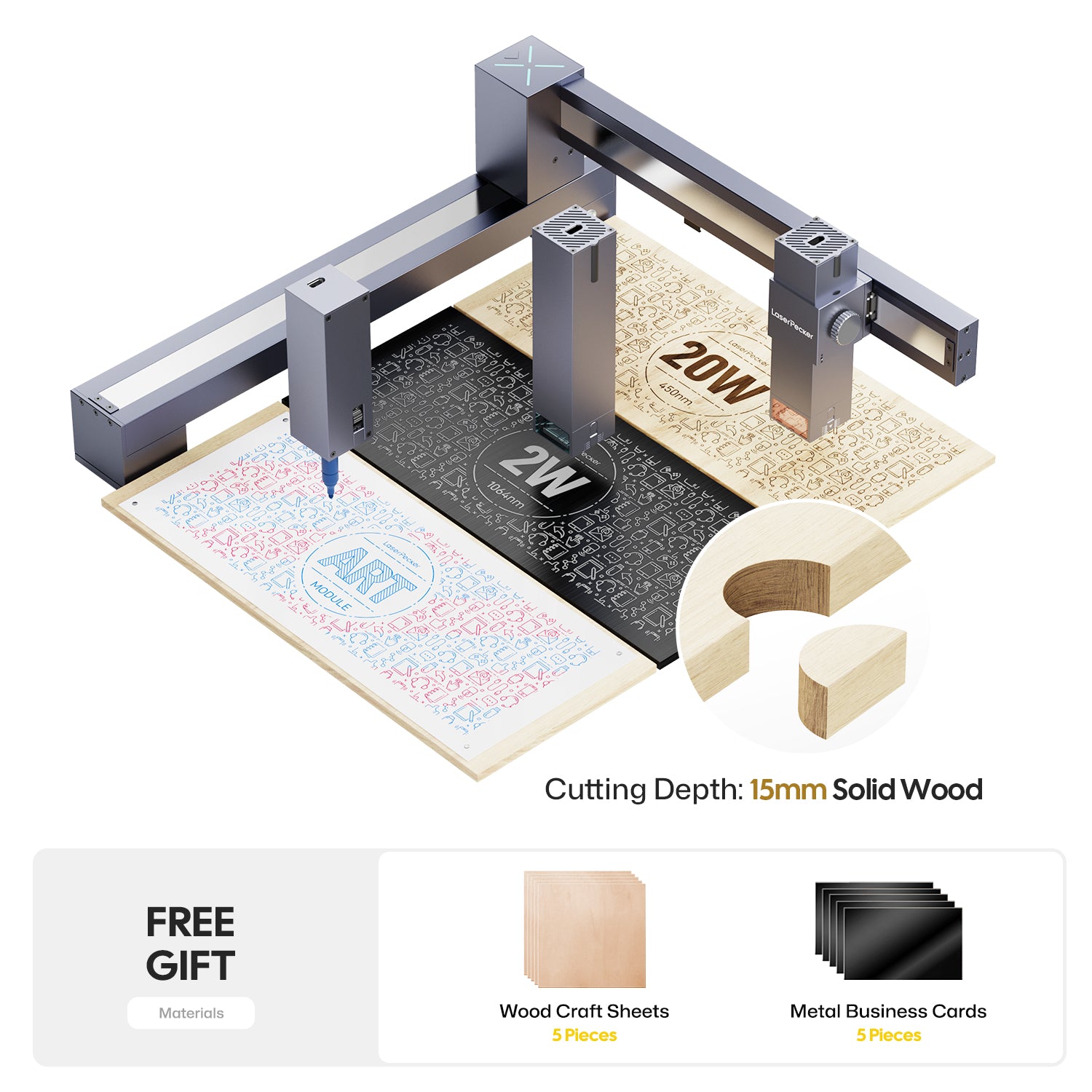

Laser Modules

The LX1 is available with four tool modules to extend its functionality and your creativity:
a 20w 450nm Blue Light Laser, a 10w 450nm Blue Light Laser, a 1064nm Infrared Laser, &/or the Artist Module*.

*Tool modules can be bundled together or purchased individually to suit your specific creative needs.

Laser Modules

The LX1 is available with four tool modules to extend its functionality and your creativity:
a 20w 450nm Blue Light Laser, a 10w 450nm Blue Light Laser, a 1064nm Infrared Laser, &/or the Artist Module*.

*Tool modules can be bundled together or purchased individually to suit your specific creative needs.

Artist Module

Artist Module

Effortless Drawing

Effortless Drawing

For creators of all ages

Use a Variety of Pens or Drawing Implements

Use a Variety of Pens or Drawing Implements

Powerful Cutting

Powerful Cutting

Power Cutting Ability

Power Cutting Ability

It cuts through up to 15mm solid wood and 10mm acrylic with ease, and realize various creation ideas.

It cuts through up to 15mm solid wood and 10mm acrylic with ease, and realize various creation ideas.

More Precise Cutting

More Precise Cutting

Up to 0.01mm cutting accuracy

"Let Creativity Fly" with LaserPecker LX1

"Let Creativity Fly" with LaserPecker LX1

Meet All Your Engraving & Cutting Needs

Meet All Your Engraving & Cutting Needs

Batch Engraving

The precision positioning feature and integrated fixtures on the base plate & cutting pad make batch work easy, fast, and efficient.

The precision positioning feature and integrated fixtures on the base plate & cutting pad make batch work easy, fast, and efficient.

Longer Service Life

Dust sheets help to avoid internal wear on the machine.

Dust sheets help to avoid internal wear on the machine.
Grease fitting enables the oiling of moving parts to decrease friction.

Batch Engraving

The precision positioning feature and integrated fixtures on the base plate & cutting pad make batch work easy, fast, and efficient.

Longer Service Life

Dust sheets help to avoid internal wear on the machine.

Highly Accurate Repeat Positioning

Highly Accurate Repeat Positioning

Precise to less than 0.01mm.

Precise to less than 0.01mm.

Red Light Positioning

Red Light Positioning

High Position Accuracy

High Position Accuracy

Grease Nozzle

Grease fitting enables the oiling of moving parts to decrease friction.

Grease Nozzle

Grease fitting enables the oiling of moving parts to decrease friction.

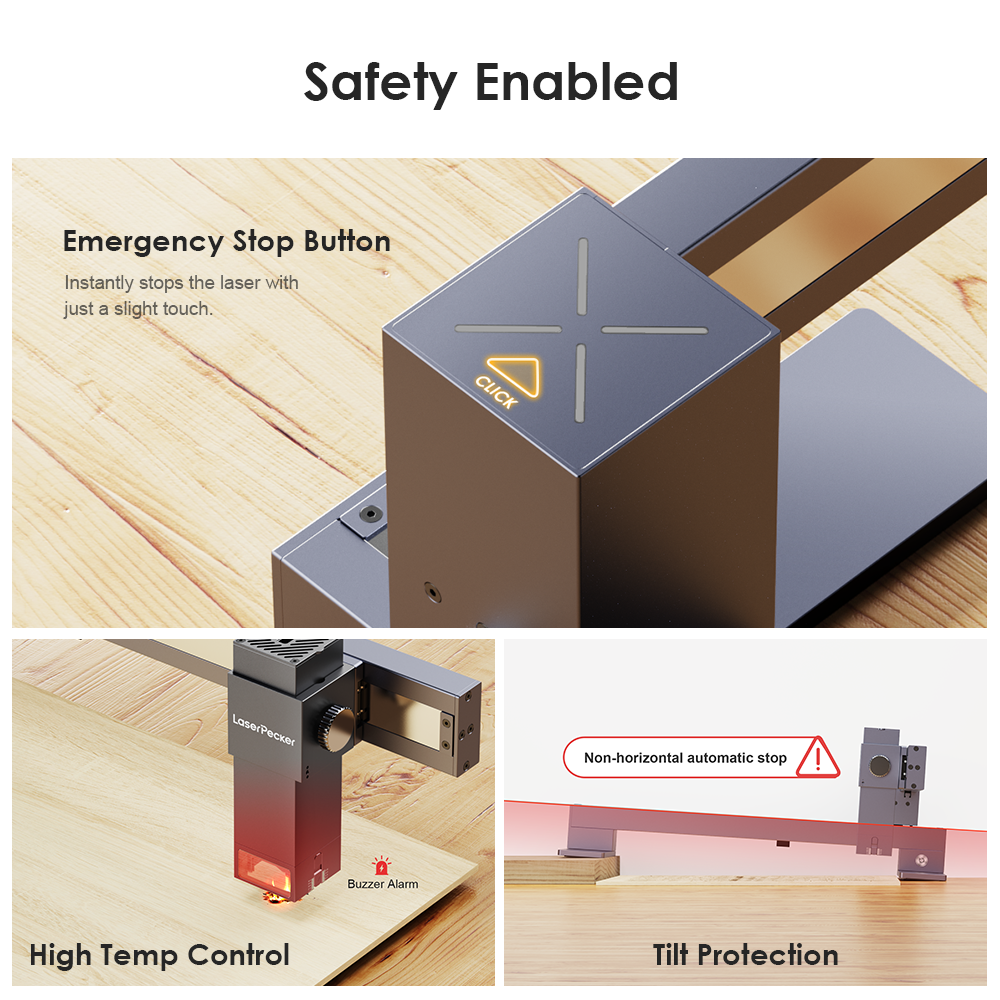

Safety Enabled

Safety Enabled

Enhanced User Interface

Enhanced User Interface

Simple and Powerful APP

LaserPecker mobile app featuring Community, Tutorial Videos, Featured, and Clipart…… allows users to share creations, learn and perfect skills, create projects, use in-APP images, and upload user images.

Simple and Powerful APP

LaserPecker mobile app featuring "Community" "Tutorial Videos", "Featured", and "Clipart"…… allows users to share creations, learn and perfect skills, create projects, use in-APP images, and upload user images.

Multi-platform App & Software

Support Android, iOS, Windows, Mac OS Systems

Compatibility: LaserPecker (mobile app); LaserPecker Design Space (PC software); LightBurn

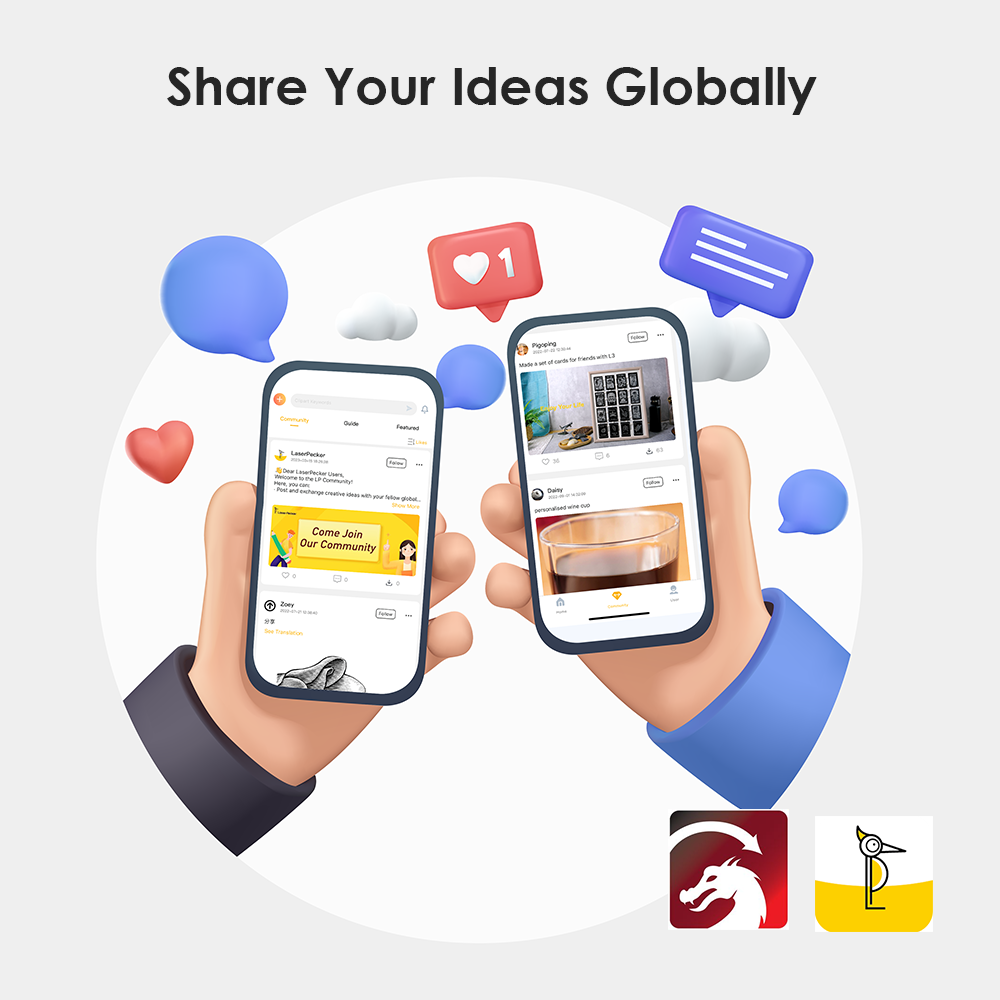

Share Your Ideas Globally

The Community feature in the Mobile app enables users to instantly share creations, ideas, and inspiration with fellow LaserPecker creators around the globe.

Share Your Ideas Globally

The Community feature in the Mobile app enables users to instantly share creations, ideas, and inspiration with fellow LaserPecker creators around the globe.

Specs

Specs

Working Area

LX1:400mm*420mm
LX1 Max:400mm*800mm

Engraving Speed

1mm/s - 200 mm/s

Preview Speed

200mm/s

Engraving Precision

≤0.01mm

Repeated Engraving Precision

≤0.01mm

Modules

10W 450nm(Blue Laser)

20W 450nm(Blue Laser)

2W1064(Infrared Laser)

Focal Length

40mm

40mm

40mm

Support Materials

Cuttable: Paper, Wood, Leather, MDF, Felt, Some dark opaque acrylic

Engravable: Paper, Wood, Leather, MDF, Stainless steel, Some dark opaque acrylic, Bamboo, Fabric, Dark glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated metal, Painted metal, Some of the metal color engrave.

Cuttable: Paper, Wood, Leather, MDF, Felt, Some dark opaque acrylic

Engravable: Paper, Wood, Leather, MDF, Stainless steel, Some dark opaque acrylic, Bamboo, Fabric, Dark glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated metal, Painted metal, Some of the metal color engrave.

Engravable:Gold, Silver, Copper, Aluminum, Titanium, Stainless Steel, Platinum, Plastics, Acrylic

Laser Spot(diameter)

0.08mm

0.08mm

0.03mm

Cutting Depth

8mm solid wood
8mm Arcrylic

15mm solid wood
10mm Arcrylic

/

Connection Mode

Wireless Bluetooth 5.0; USB Connection

APP & Software

LaserPecker App /LaserPecker PC software/ Lightburn

File Format

APP: G-code/JPG/PNG/BMP;
Software: SVG/PDF/AI/CDR/DWG/DXF

Supported Languages

Traditional Chinese, Simplized Chinese, English

Continue Working Time

63h

Whole Unit Power

≤120W

Impulse Frequency

2.5K

Power Input

DC(24V 5A 100-240V 50-60HZ)

Weight

Whole Unit: 5KG

Working Area

LX1:400mm*420mm
LX1 Max:400mm*800mm

Engraving Speed

1mm/s - 200 mm/s

Preview Speed

200mm/s

Engraving Precision

≤0.01mm

Repeated Engraving Precision

≤0.01mm

Modules

10W 450nm(Blue Laser)/20W 450nm(Blue Laser)/2W1064(Infrared Laser)

Focal Length

40mm

Support Materials

10W 450nm(Blue Laser)/20W 450nm(Blue Laser):
Cuttable: Paper, Wood, Leather, MDF, Felt, Some dark opaque acrylic

Engravable: Paper, Wood, Leather, MDF, Stainless steel, Some dark opaque acrylic, Bamboo, Fabric, Dark glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated metal, Painted metal, Some of the metal color engrave.

2W1064(Infrared Laser):
Engravable:Gold, Silver, Copper, Aluminum, Titanium, Stainless Steel, Platinum, Plastics, Acrylic

Laser Spot(diameter)

0.08mm

Cutting Depth

10W 450nm(Blue Laser):
8mm solid wood
8mm Arcrylic

20W 450nm(Blue Laser):
15mm solid wood
10mm Arcrylic

Connection Mode

Wireless Bluetooth 5.0; USB Connection

APP & Software

LaserPecker App /LaserPecker PC software/ Lightburn

File Format

APP: G-code/JPG/PNG/BMP;
Software: SVG/PDF/AI/CDR/DWG/DXF

Supported Languages

Traditional Chinese, Simplized Chinese, English

Continue Working Time

63h

Whole Unit Power

≤120W

Impulse Frequency

2.5K

Power Input

DC(24V 5A 100-240V 50-60HZ)

Weight

Whole Unit: 5KG

FAQ

When will the LX1/LX1 Max/Accessories be shipped?

Delivery of the LX1 and LX1 Max will begin in May 2023. The accessories for LX1 and LX1 Max will be shipped in May to June.

Do you ship globally and what is the cost?

At the pre-sale stage, LX1 can be shipped globally except Japan, Korea, and Taiwan, China.

Standard shipping is free and the cost of optional expedited shipping will be determined by the delivery location.

If I don't buy the standard LX1 with the 4-module bundle, which laser should I select?

The materials that you intend to work with will determine the best choice of laser for you.

The 450nm Blue Light Laser is designed to work on organic materials so if you want to engrave and cut on wood, acrylic, leather, etc. it will be your choice. It is also suitable for engraving on coated and anodized metals, but NOT directly on bare metal.

Due to its wavelength, the 1064nm Infrared Laser is recommended if you want to engrave on bare metals such as aluminum, gold, silver, copper, nickel, and stainless steel. Additionally, the 1064nm Infrared Laser is best suited for engraving on plastic.

If I choose the 450nm Blue Light Laser, should I get the 10w or the 20w module?

Their main difference lies in cutting ability. If you have a higher requirement for laser cutting ability, the 20W module is a better chioce for you. Otherwise, the 10W module is a better choice for you.

If I want to add on an additional module later, for example, the Artist Module, can buy it separately?

Absolutely! The LX1 is designed to be expandable and the interchangeable modules can be bought all at once, or one by one depending on your specific needs.

If you are not sure which laser to choose, feel free to reach out to our customer service team (services@laserpecker.com).
Pro Tip: Our LaserPecker LX1 Facebook Group will share the most up-to-date product information.
